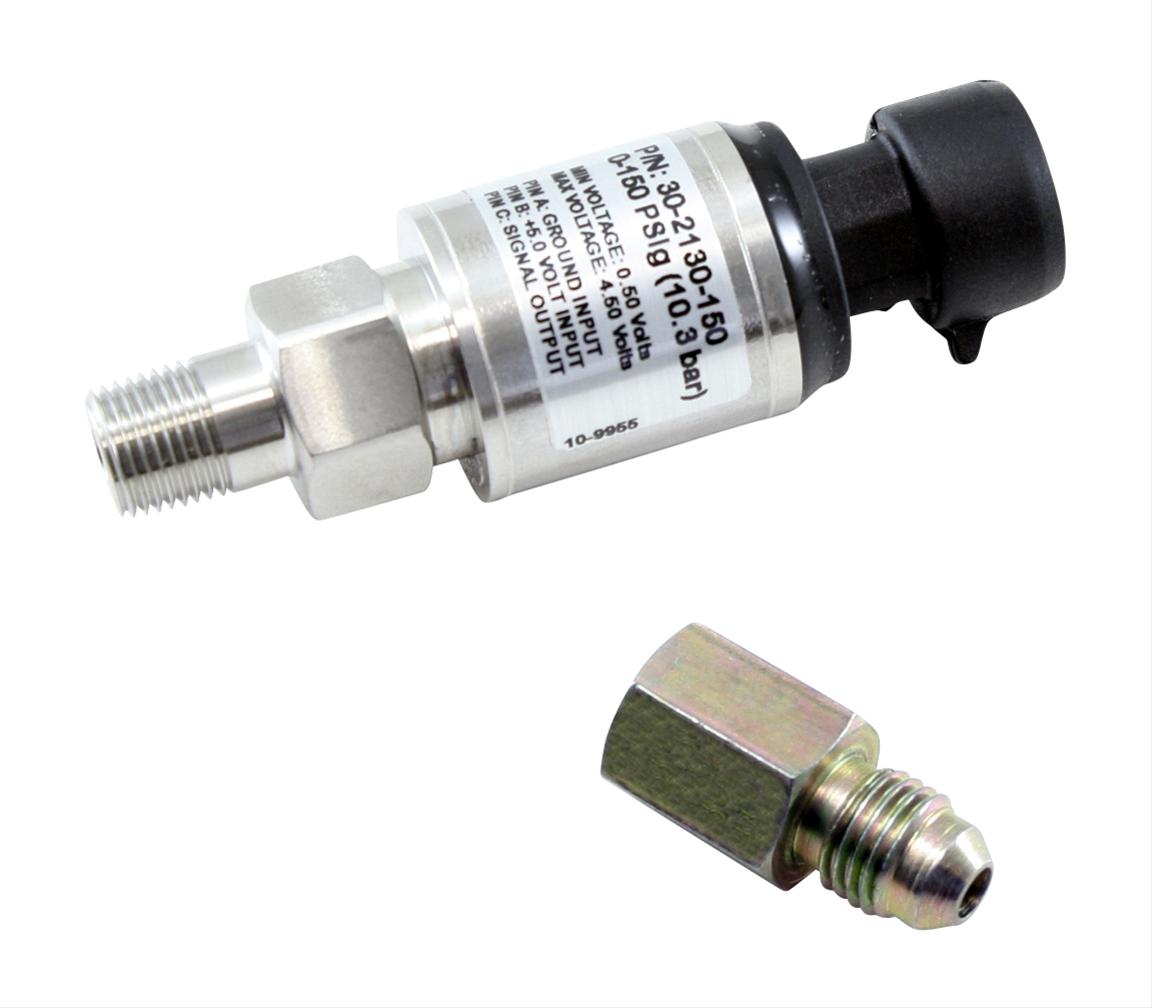

AEM 150 PSIg Oil Fuel Pressure Stainless Sensor Kit 1/8NPT -4

This 150psi sensor can be used for Oil Pressure and/or Fuel pressure as well as any other high pressure fluid reading.

150 PSIg Stainless Steel Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 150 PSIg Stainless Steel Sensor, Connector, Pins & 1/8" NPT to -4 Adapter.

Sensor Performance Specifications:

Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity

Operating Temp: -40C to 105C / -40F to 221F

Burst Pressure: 1500PSI

Response Time: < 1mS

Wetted Materials: 304L & 316L Stainless Steel

Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes

Weight: <85g

Supply Current: <6mA at 5 Vdc

Output: .5 to 4.5Vdc Linear

Transfer Function: PSI = (37.5*(Voltage))-18.75

Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
