AEM 5 Bar Boost Pressure Map Sensor Stainless Kit 1/8NPT -4
AEM 5 Bar Boost Pressure Map Sensor Stainless Kit 1/8NPT -4
Couldn't load pickup availability
AEM Map Sensors are high quality, durable, accurate, and stand up to the torture tests of racing. When picking a map sensor, you should pick the smallest map sensor that will provide you with enough "gauge pressure" to read the amount of the maximum boost you plan on running. This list below should help you
2.0 bar Map Sensor will read a maximum of 14.3 psi of Boost
3.0 bar Map Sensor will read a maximum of 28.8 psi of Boost
3.5 bar Map Sensor will read a maximum of 36.0 psi of Boost
4.0 bar Map Sensor will read a maximum of 43.3 psi of Boost
5.0 bar Map Sensor will read a maximum of 57.8 psi of Boost
For Reference:
1 bar = 14.5 psi
1 atmosphere = 14.7 psi
1 atmosphere is reserved for vacuum

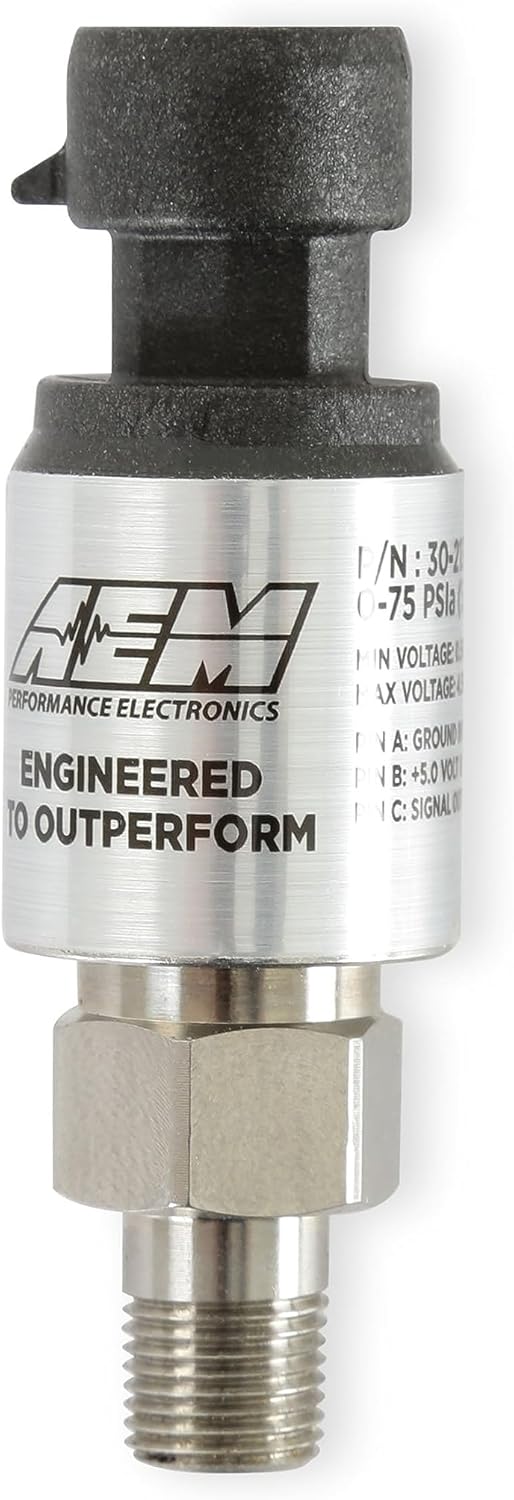

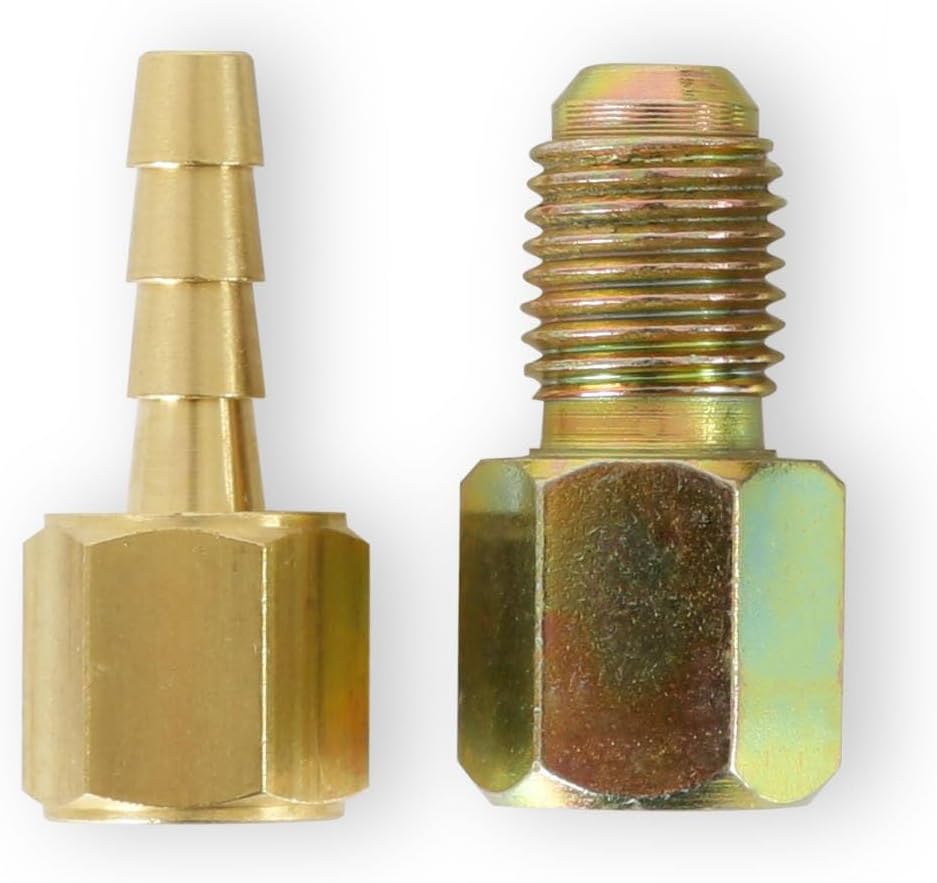

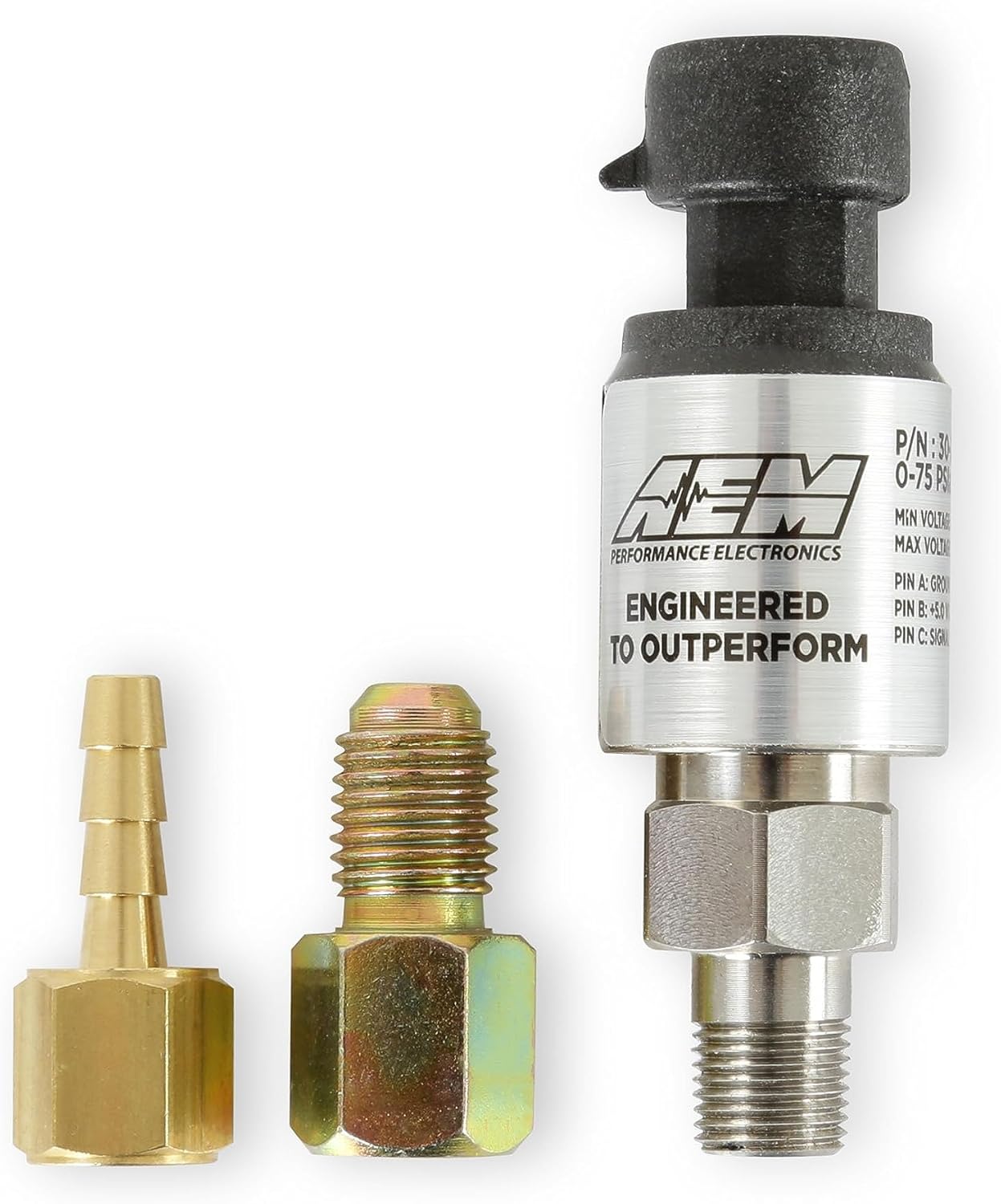

5 BAR / 75 PSIa MAP Stainless Steel Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 5 BAR / 75 PSIa Stainless Steel Sensor, Connector, Pins, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter.
Sensor Performance Specifications:
Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 750PSI
Response Time: < 1mS
Wetted Materials: 304L & 316L Stainless Steel
Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
Weight: <85g
Supply Current: <6mA at 5 Vdc
Output: .5 to 4.5Vdc Linear
Transfer Function: PSI = (18.75*(Voltage))-24.075
Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
