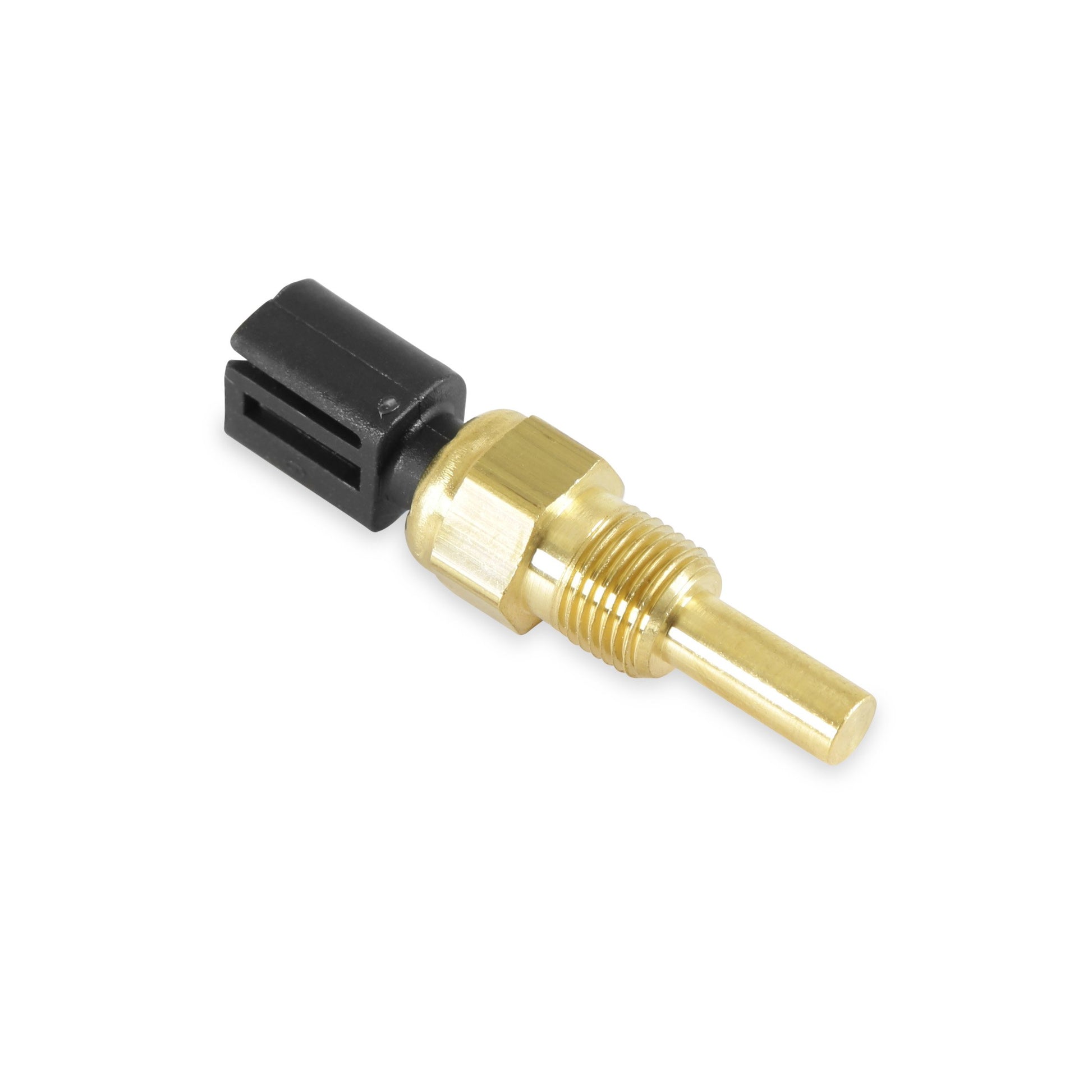

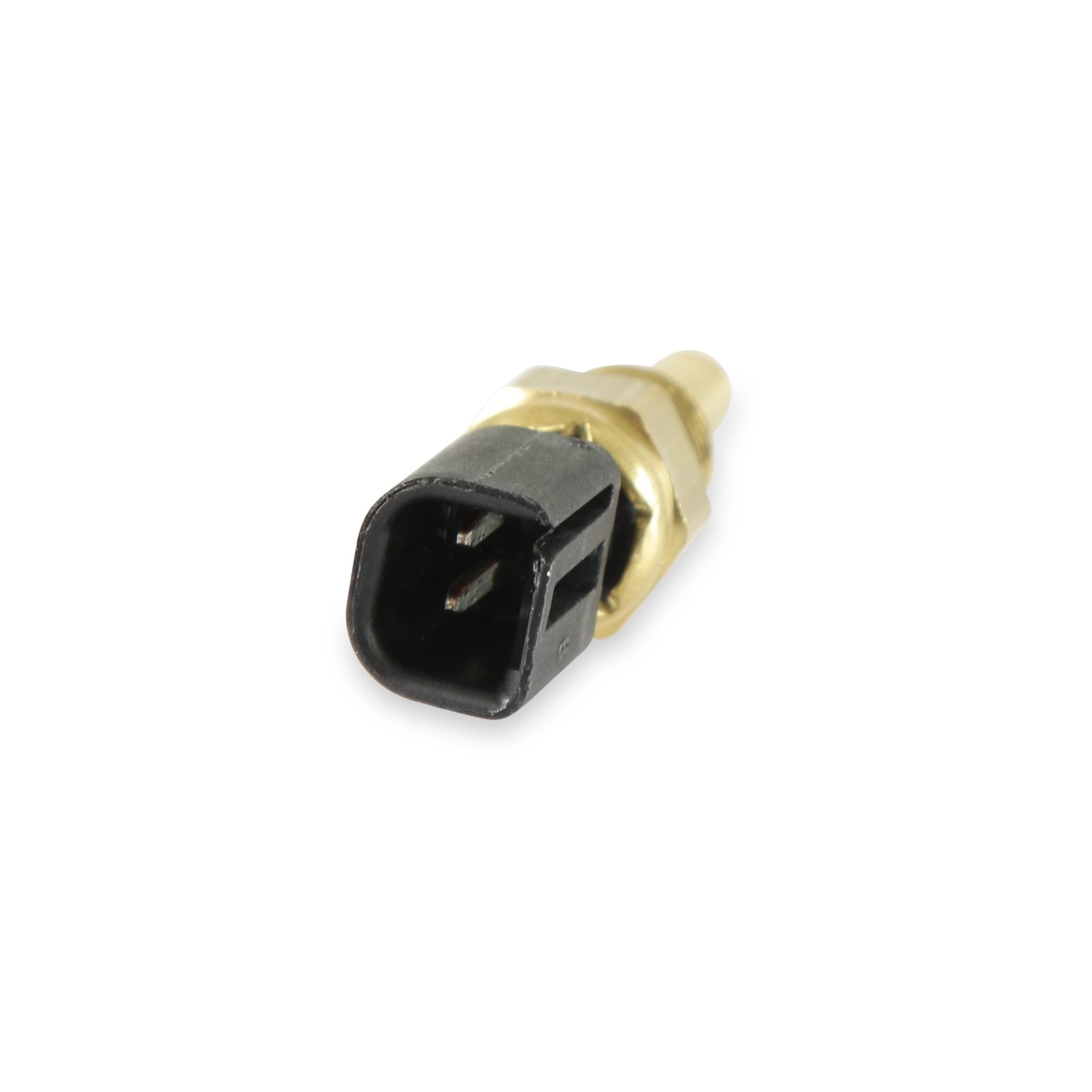

AEM Water Temp Sensor Kit 1/8" NPT Water / Coolant / Oil Temp Sensor with Plug & Pins

Universal 1/8" PTF temperature sensor to be used with standalone ECUs, can be used on Water/Coolant or Oil. We always stick to AEM Sensors whenever we can. The accuracy is excellent, they are durable, and the price is affordable. We have been using them for a long time without any issues. We also like that it comes with everything needed to install in any wiring harness, even the aluminum weld-on bung, the weather proof connector, and pins.
30-2012 - 1/8" Water Temp Sensor Kit

• Accuracy: < 2°C / 3.6°
• Operating Temp: -40C to 200C / -40F to 392F
• Resistive Range (Ω): See Table
• Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
• Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
• Sensor Body Material: Brass
• Thread: 1/8"-27 PTF
• Hex Size: 1/2"
• Installation Torque: 13.5Nm / 10 ft-lbs
• Weight: 12.2g
• Supply Current: 5Vdc
• Elec. Termination: Connector. Includes mating connector, pins & pin lock

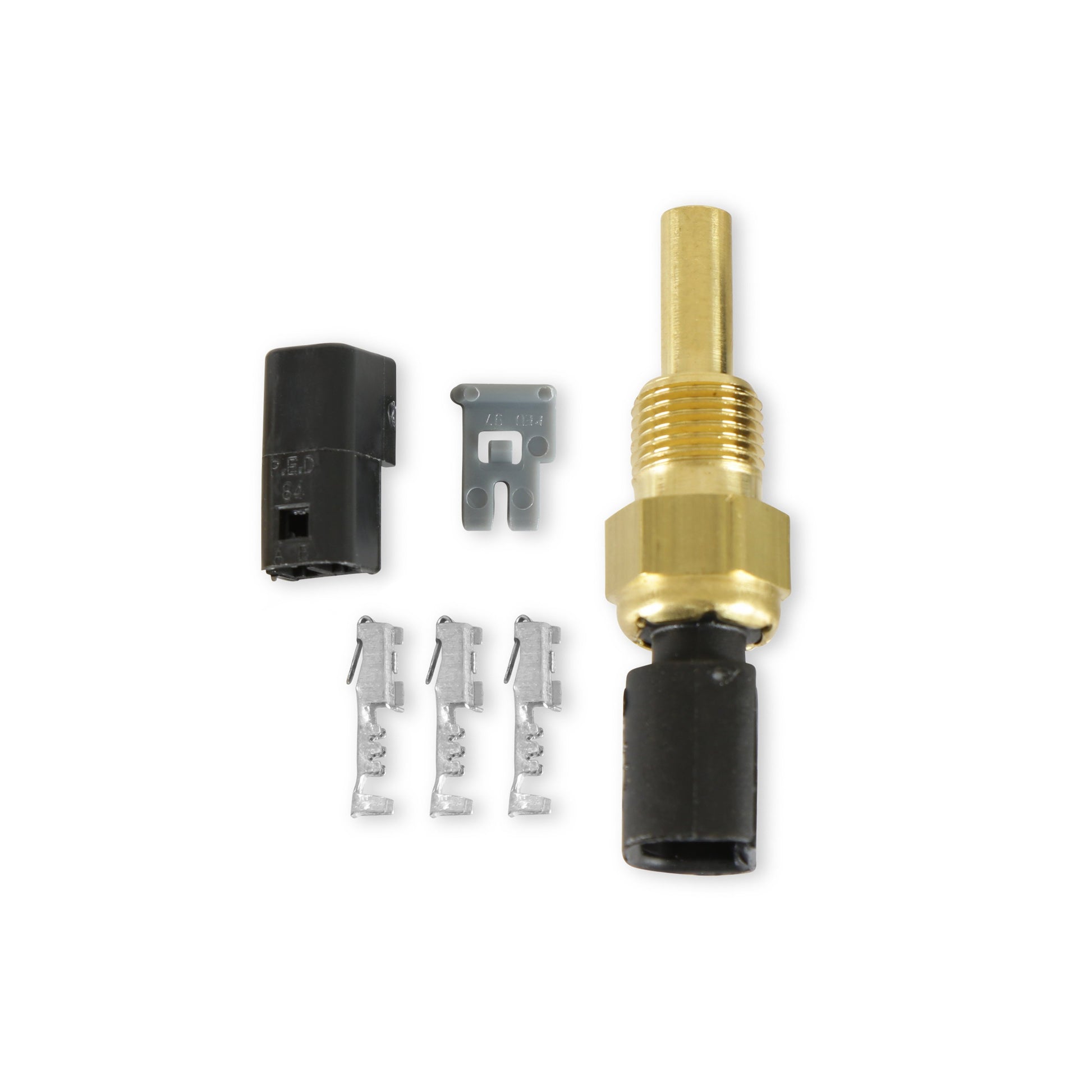

• Includes: Water Temp Sensor, Connector, Pins & Pin Lock
